The OEM’s Authoritative Guide to Procuring Custom Stainless Steel Fabrications:

From Metallurgy to Total Cost of Ownership

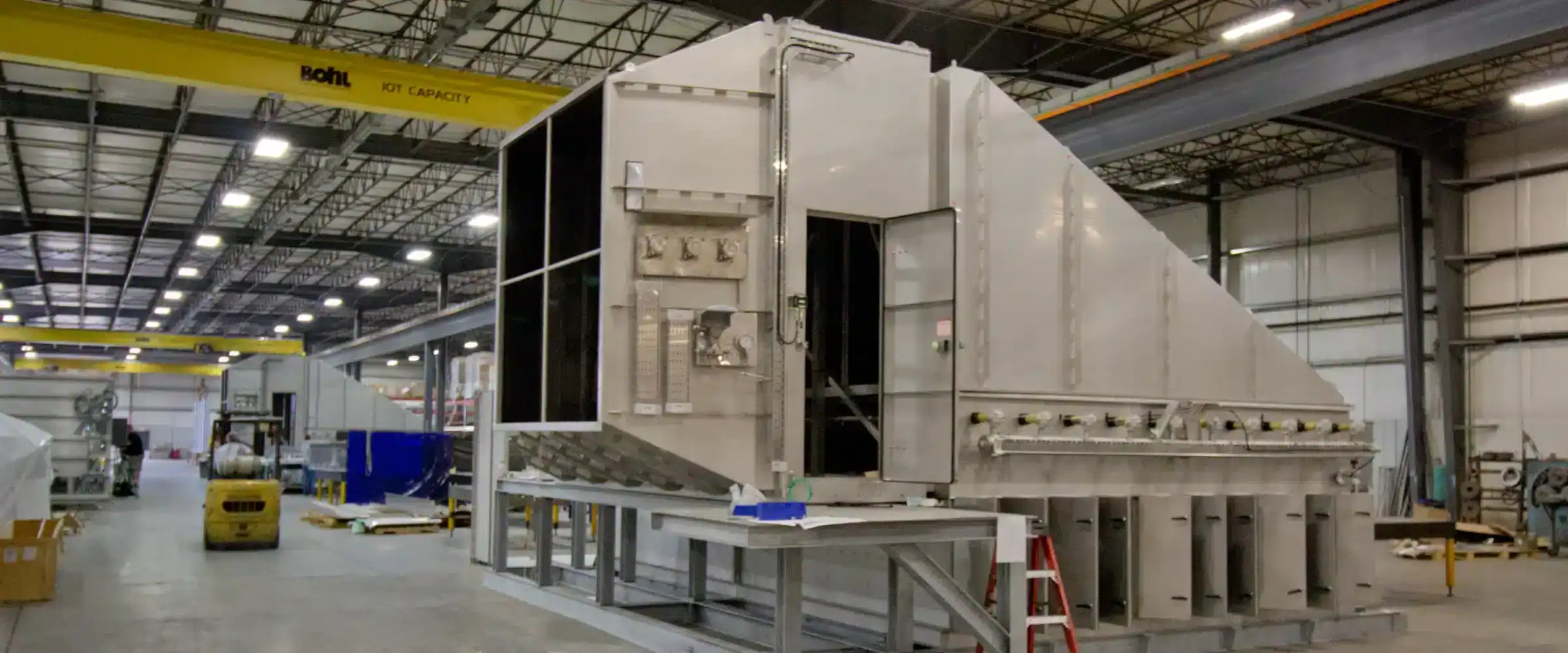

Introduction

In the landscape of modern manufacturing, custom stainless steel fabrications are not mere components; they are the bedrock of performance, safety, and reliability across a spectrum of critical industries. From the sterile environments of pharmaceutical and food processing facilities to the demanding conditions of aerospace and petrochemical plants, the integrity of stainless steel components is paramount. For the Original Equipment Manufacturer (OEM), the process of sourcing these fabrications is a complex, multi-stakeholder endeavor. Procuring custom stainless steel fabrications demands a sophisticated understanding that transcends a simple price-per-part analysis, requiring a harmonized effort from engineering, quality assurance, and procurement teams.

This guide is engineered to serve as the definitive resource for these teams. It moves beyond a superficial list of standards to provide a deep, integrated understanding of the entire procurement lifecycle. For the Design Engineer, it offers a nuanced exploration of material science, linking metallurgical properties to manufacturability and performance. For the Quality Manager, it provides a rigorous framework for verification, from deciphering Material Test Reports (MTRs) to specifying advanced Non-Destructive Testing (NDT) protocols. For the Purchasing Manager, it translates technical specifications into commercial realities, reframing the procurement decision through the lens of Total Cost of Ownership (TCO) and strategic supplier partnerships.

By navigating the intricate connections between material selection, design for manufacturability (DFM), fabrication standards, and quality assurance, OEMs can mitigate risk, control costs, and build resilient, high-performing supply chains. This comprehensive guide provides the knowledge and strategic framework necessary to achieve predictable excellence in every custom stainless steel fabrication project.

Section 1: The Foundation – Strategic Material Selection for Optimal Performance

The selection of a stainless steel grade is the single most critical decision in the lifecycle of a fabricated component. It is not an isolated engineering task but the foundational input that dictates downstream manufacturing processes, quality control requirements, performance characteristics, and the ultimate cost structure of the project. A strategic approach to material selection requires a deep understanding of the fundamental metallurgy, the specific performance trade-offs between grades, and the alignment of material cost with long-term value.

1.1 Beyond the Basics: Understanding Stainless Steel Families

Stainless steel is not a single material but a family of iron-based alloys defined by a minimum chromium content of 10.5%. This chromium is the key to the material’s signature corrosion resistance; it reacts with oxygen to form a thin, stable, and self-healing passive chromium-oxide layer on the surface, protecting the iron from oxidation (rust). Other elements, such as nickel, molybdenum, and manganese, are added to modify the alloy’s metallurgical structure and enhance specific properties like formability, strength, and resistance to particular types of corrosion. These alloys are broadly categorized into four primary families based on their crystalline microstructure.

Austenitic (200 & 300 Series): This is the most widely used family of stainless steels, characterized by a composition that includes both chromium and nickel (and manganese in the 200 series). They are renowned for their excellent corrosion resistance, exceptional formability, and superior toughness, even at cryogenic temperatures. In their annealed (fully softened) condition, they are non-magnetic. However, they are subject to a high rate of work hardening, meaning they gain significant strength and hardness when subjected to cold work like bending or forming. Types 304 and 316 are the most common grades in this group.
Ferritic (400 Series): These are straight-chromium alloys that are magnetic and cannot be hardened by heat treatment. They possess good ductility and corrosion resistance in milder environments. Their fabrication characteristics are more akin to carbon steels, as they exhibit only moderate work hardening. Type 430 is the general-purpose grade of the ferritic group.
Martensitic (400 Series): Like the ferritic group, martensitic stainless steels are straight-chromium alloys, but their carbon content is higher, allowing them to be hardened by heat treatment (quenching and tempering). They are magnetic and are selected for applications where high strength, hardness, and wear resistance are required in combination with moderate corrosion resistance. Type 410 is the most common alloy in this group.
Duplex: As their name suggests, duplex stainless steels have a mixed microstructure of austenite and ferrite. This hybrid structure provides a unique combination of properties: the high strength of ferritic grades (typically twice the yield strength of austenitic grades) and the excellent corrosion resistance and toughness of austenitic grades. They are particularly noted for their outstanding resistance to chloride stress corrosion cracking (SCC), a failure mechanism that can affect standard austenitic grades in certain environments.

1.2 Decoding the Grades: A Comparative Analysis for OEM Applications

Within these families, specific grades are formulated for distinct applications. For OEMs, a handful of grades represent the vast majority of specifications, each offering a unique balance of performance, cost, and fabricability.

Type 304/304L (The Workhorse): Often referred to by its “18-8” composition (approximately 18% chromium, 8% nickel), Type 304 is the most versatile and widely used stainless steel. It offers excellent corrosion resistance in a wide range of atmospheric and chemical environments, making it suitable for everything from food processing equipment and kitchen sinks to architectural paneling and chemical tanks. The “L” designation (304L) indicates a lower carbon content (<0.03%), which is specified to prevent chromium carbide precipitation at the grain boundaries during welding, thereby preserving corrosion resistance in the heat-affected zone (HAZ).
Type 316/316L (The Marine Grade): Type 316 is a modification of Type 304 that includes the addition of 2-3% molybdenum. This addition significantly enhances its resistance to corrosion, particularly against chlorides and other industrial solvents. This makes it the material of choice for applications in marine environments, chemical and pharmaceutical processing, and any situation where exposure to salts or other aggressive corrosives is expected. As with 304L, the 316L grade has a low carbon content to improve its post-welding corrosion resistance.
Type 430 (The Cost-Effective Choice): As the primary general-purpose ferritic grade, Type 430 offers good corrosion resistance in mild atmospheric conditions and is often used where aesthetics are important but the environment is not overly aggressive. Common applications include automotive trim, decorative architectural elements, and the interiors of domestic appliances. Its lower alloy content (no expensive nickel) makes it a more economical option than the 300-series grades.
Type 410 (The High-Strength Option): This is the basic, general-purpose martensitic stainless steel. It is chosen for applications that require a combination of high strength and moderate corrosion and heat resistance. Through heat treatment, it can be hardened to achieve high mechanical properties, making it suitable for highly stressed parts such as cutlery, fasteners, and steam and gas turbine components.

1.3 The Engineer’s Dilemma: Balancing Corrosion Resistance, Strength, and Fabricability

The engineer’s primary task is to select a material that meets the performance requirements of the application. However, this decision cannot be made in a vacuum. The inherent properties of the chosen grade have a profound impact on how it can be fabricated. For example, austenitic grades like Type 304 offer superb formability, allowing for complex shapes to be created through deep drawing and stretching. Yet, this same family of alloys has a high rate of work hardening, meaning that as the material is formed, it becomes progressively harder and stronger, requiring more powerful equipment and potentially intermediate annealing steps to soften the material for further processing.

In contrast, ferritic grades like Type 430 do not work-harden significantly and can be formed using techniques similar to those for carbon steel, but they lack the exceptional ductility of the austenitic grades. Martensitic grades, while offering high strength through heat treatment, have only fair ductility and require careful pre-heating and post-weld heat treatment to avoid cracking during welding. This creates a complex matrix of trade-offs. An engineer might select a material for its superior corrosion resistance, only to find that it is difficult or costly to weld, or that its strength requires specialized forming equipment. This interconnectedness between performance and fabricability is a central challenge in stainless steel design.

The cascading effects of this initial choice are significant. An engineer who specifies an austenitic grade for a welded assembly must recognize that this decision has implications for the quality manager. The coarse, anisotropic grain structure that can form in austenitic welds is notoriously difficult to inspect using standard ultrasonic techniques, as it can scatter and distort the sound beam. This necessitates the use of more advanced—and more expensive—NDT methods like Phased Array Ultrasonic Testing (PAUT) to ensure weld integrity. Thus, the material selection directly dictates the required quality assurance protocol.

1.4 The Purchasing Manager’s Perspective: Aligning Material Cost with Lifecycle Value

For the purchasing manager, the higher initial acquisition cost of stainless steel compared to materials like carbon or galvanized steel is an immediate consideration. A component fabricated from Type 316L will have a significantly higher material cost than one made from mild steel. However, a purely transactional focus on initial price overlooks the most compelling economic advantage of stainless steel: its exceptionally low Total Cost of Ownership (TCO).

TCO encompasses not only the initial purchase price but also all costs incurred over the asset’s entire service life, including installation, maintenance, downtime, and replacement. Stainless steel’s inherent durability and corrosion resistance mean that it requires minimal maintenance and has a much longer lifespan, especially in corrosive or demanding environments. A carbon steel tank in a chemical plant might need to be recoated every few years and replaced every decade, incurring significant costs for materials, labor, and operational downtime. A stainless steel tank, while more expensive upfront, could last for the life of the plant with minimal maintenance. This long-term performance provides a substantial return on the initial investment, making it the more economical choice when viewed through the strategic lens of lifecycle value.

Section 2: From Blueprint to Reality – Design for Manufacturability (DFM) in Stainless Steel

Once a material is selected, the engineering design becomes the blueprint for fabrication. However, a design that is theoretically sound may be impractical, inefficient, or unnecessarily expensive to manufacture. Design for Manufacturability (DFM) is a proactive engineering practice focused on designing products in a way that optimizes for ease of manufacturing, cost, quality, and lead time. For stainless steel, with its unique set of fabrication challenges, DFM is not just a best practice; it is a strategic imperative that directly impacts the project’s success.

2.1 Key Fabrication Processes: Laser Cutting, Forming, and Assembly

A top-tier custom stainless steel fabricator will possess a range of advanced capabilities to transform raw material into finished components. Understanding this “toolkit” is essential for engineers to design parts that can be produced efficiently.

Precision Laser Cutting: Modern laser cutters use a highly focused beam of light to cut stainless steel sheet and plate with exceptional accuracy and clean edges, often eliminating the need for secondary finishing operations. This technology is ideal for creating complex geometries and intricate features.
CNC Bending and Forming: Computer Numerical Control (CNC) press brakes are used to bend and form flat sheets of stainless steel into three-dimensional parts. These machines offer high precision and repeatability, ensuring that components are formed to exact angles and dimensions.
Welding and Assembly: Welding is the primary method for joining stainless steel components into complex assemblies. Different welding processes are used depending on the application’s requirements for precision, strength, and aesthetics.
- Tungsten Inert Gas (TIG) Welding: Known for producing high-quality, precise, and aesthetically pleasing welds, TIG welding is often the preferred method for critical applications and components where appearance is important.
- Metal Inert Gas (MIG) Welding: A faster, semi-automatic process that is well-suited for a wide range of structural and general fabrication applications.

2.2 Unique Challenges of Stainless Steel: Mitigating Work Hardening, Warping, and Contamination

Fabricating stainless steel is fundamentally different from working with carbon steel. Its unique properties present specific challenges that must be addressed through careful process control and design considerations.

Thermal Properties and Warping: Stainless steel has significantly lower thermal conductivity than carbon steel, meaning heat does not dissipate as quickly from the weld or cut zone. This localized heat buildup can cause thermal expansion and contraction, leading to warping and distortion, particularly in thin-gauge materials. This requires strategies like using lower heat input, faster travel speeds during welding, and proper fixturing to hold the part rigid during the process.
Work Hardening: As previously noted, austenitic stainless steels harden rapidly when subjected to cold work. This means that operations like bending, forming, or even heavy grinding can make the material significantly harder and less ductile. This must be accounted for in the design of forming tools and the sequencing of operations. For severe forming, an intermediate annealing step may be necessary to re-soften the material.
Contamination Risk: This is a critical quality consideration. The corrosion resistance of stainless steel depends on its passive chromium-oxide layer. This layer can be compromised by contact with free iron particles. If tools used on carbon steel—such as grinding wheels, wire brushes, or even handling equipment—are then used on stainless steel, they can embed microscopic iron particles into the surface. In the presence of moisture, these embedded particles will rust, creating localized corrosion sites and potentially leading to premature failure of the component. Preventing this cross-contamination requires dedicated tooling, segregated work areas, and meticulous cleaning protocols.

2.3 DFM Principles for Cost and Quality Optimization

Effective DFM translates the understanding of these challenges into actionable design choices that reduce manufacturing complexity, cost, and lead time.

Design Simplification: The most powerful DFM principle is to simplify the design wherever possible without compromising function. Reducing the number of bends, using a single, common bend radius throughout a part, and eliminating unnecessary features can significantly cut down on machine setup time and processing cycles.
Standardization: Specifying standard material thicknesses and using standard hole sizes and bend radii allows the fabricator to use existing tooling. A design that calls for a non-standard bend radius may force the fabricator to order custom tooling, which adds significant cost and weeks to the lead time. This single design choice can have a disproportionate impact on the project’s budget and schedule.
Early Fabricator Collaboration: Engaging with a qualified fabricator during the design phase is one of the most effective DFM strategies. The fabricator’s experts can review a design and identify features that may be difficult or costly to produce. They can often suggest minor modifications—such as changing a weld joint configuration or slightly altering a bend radius—that maintain the design’s intent while dramatically improving manufacturability. This collaborative approach prevents costly rework and delays that arise when manufacturing issues are only discovered after the design is finalized.

This collaborative process de-risks the entire project. Consider an engineer who designs a component with a very tight, sharp internal corner to fit into a compact assembly. To the fabricator, this design presents a significant challenge. Bending stainless steel to a sharp corner induces extreme stress and work hardening, increasing the risk of cracking. It may also require specialized, expensive tooling. By consulting the fabricator early, the engineer might learn that specifying a small, standard radius in that corner would still meet the spatial requirements but would allow the part to be formed easily with standard tooling, eliminating the risk of cracking and avoiding the cost and delay of custom tools. This small change, born from collaboration, removes financial, schedule, and performance risks from the project.

2.4 Specifying Tolerances: A Practical Guide to ISO 13920 and ISO 2768

Tolerances define the acceptable range of variation for a given dimension. While tight tolerances are sometimes necessary for critical features, over-tolerancing—specifying tolerances that are tighter than functionally required—is a common driver of unnecessary cost. General tolerance standards provide a practical framework for ensuring parts fit and function correctly without the expense of excessive precision.

ISO 13920 – General Tolerances for Welded Constructions: This standard is specifically intended for welded assemblies. It provides a set of default tolerances for linear and angular dimensions, as well as for straightness and flatness, based on different tolerance classes (e.g., Class B for general fabrication). By referencing this standard on a drawing, an engineer can ensure predictable dimensional control for a welded frame or chassis without having to tolerance every single feature individually.
ISO 2768 – General Tolerances: This standard covers general tolerances for linear and angular dimensions and geometric tolerances (such as flatness and perpendicularity) for parts produced by machining or forming. It provides a baseline level of precision that is achievable through standard manufacturing practices. Specifying “ISO 2768-m” (for medium tolerance class) on a drawing provides the fabricator with a clear and universally understood set of expectations for the part’s accuracy.

Using these standards gives the entire OEM team a common language. The engineer can efficiently communicate requirements, the quality manager has a clear, objective benchmark for inspection and acceptance, and the purchasing manager can be confident that quotes from different suppliers are based on the same level of precision.

Section 3: The Language of Quality – A Practical Guide to Core Fabrication Standards

Industry standards are the collective expression of best practices, safety requirements, and quality benchmarks. They form the contractual and technical language that ensures consistency, compliance, and traceability throughout the supply chain. For an OEM, specifying the correct standards in drawings, RFQs, and contracts is not a mere formality; it is the most effective way to translate design requirements into legally enforceable deliverables, thereby mitigating technical and commercial risk.

3.1 Ensuring Material Integrity: Raw Material Specifications

The foundation of any quality fabrication is the raw material itself. Standards governing the material’s composition, mechanical properties, and finish provide the initial guarantee of integrity.

ASTM A240 / A240M: This is the cornerstone specification for chromium and chromium-nickel stainless steel plate, sheet, and strip used for pressure vessels and for general applications. It defines the chemical composition and mechanical property requirements for a wide range of grades.
ASTM A480 / A480M: This standard specifies the general requirements for flat-rolled stainless and heat-resisting steel plate, sheet, and strip. It covers aspects like dimensional tolerances, flatness, and, critically, the standard designations for surface finishes (e.g., No. 2B Mill Finish, No. 4 Brushed Finish).
EN 10088: This is the comprehensive European Norm (EN) standard for stainless steels. For OEMs operating in or sourcing from global markets, understanding the EN equivalents to ASTM grades is essential for ensuring material compliance across different regions.
ISO 15510: This International Organization for Standardization (ISO) standard provides a valuable cross-reference list of stainless steel grades from various national and international standards. For a purchasing manager vetting global suppliers, this standard is an indispensable tool for confirming the equivalency of materials quoted under different systems.

3.2 The Backbone of Fabrication: A Deep Dive into Welding Codes

Welding is often the most critical process in stainless steel fabrication, as it creates the joints that ensure the structural integrity of an assembly. Adherence to established welding codes is non-negotiable for any application where safety and reliability are paramount.

AWS D1.6/D1.6M (Structural Welding Code—Stainless Steel): This is the primary standard from the American Welding Society (AWS) governing the welding of structural stainless steel in the U.S.. It provides comprehensive requirements for the design of welded connections, the qualification of Welding Procedure Specifications (WPS) and welders, fabrication practices, and inspection criteria. For an engineer, it is the guide to designing weldable structures. For a quality manager, it is the rulebook for weld inspection and acceptance.
ASME Section IX (Boiler and Pressure Vessel Code): This section of the ASME code is the global benchmark for qualifying welders and welding procedures for components subjected to high pressure or stress, such as pressure vessels and process piping. Compliance with ASME IX provides a high degree of confidence that welds will perform safely under demanding service conditions.
ISO 15614-1: This is the international standard for the specification and qualification of welding procedures for metallic materials. It is widely adopted by global enterprises to ensure a consistent approach to welding quality across different manufacturing locations and suppliers.

The act of specifying these standards in a contract transforms a subjective assessment of “good workmanship” into an objective, verifiable, and legally binding requirement. For instance, a purchasing manager might issue an RFQ for a support frame, simply stating “welded 304 stainless steel construction.” A low-cost supplier could win the bid by using welders who are not formally qualified. The resulting welds might appear acceptable visually but could harbor internal defects like lack of fusion that compromise the frame’s load-bearing capacity. If the frame fails, the OEM has limited contractual recourse. However, if the RFQ had specified “All welding shall be performed in accordance with AWS D1.6,” the OEM would have a clear, objective basis for rejecting the product or claiming damages. This simple contractual note is a powerful risk management tool.

3.3 Achieving the Perfect Surface: Finishing and Passivation Standards

The surface condition of a stainless steel component is critical not only for aesthetics but also for performance, particularly corrosion resistance and cleanability.

Surface Finish Designations: As defined in ASTM A480, standard finishes range from dull mill finishes (like No. 1 or 2B) to highly reflective polished finishes (like No. 8 mirror finish). For many industrial applications, a No. 4 “brushed” finish is specified. In hygienic industries like food processing and pharmaceuticals, the surface finish is often specified by its Roughness Average (Ra), a measure of surface texture. A smooth surface with a low Ra value (e.g., <0.8μm) is required to minimize crevices where bacteria can harbor and to facilitate effective cleaning and sterilization.
ASTM A380 / A967 (Cleaning, Descaling, and Passivation): These are arguably two of the most important—and often overlooked—standards in stainless steel fabrication. After fabrication processes like cutting, forming, and welding, the surface of the steel can be contaminated with free iron from tooling, and the heat from welding can disrupt the protective chromium-oxide layer. Passivation is a post-fabrication chemical treatment, typically involving a nitric or citric acid bath, that removes these contaminants and chemically enhances the passive layer, restoring the material to its maximum corrosion resistance. Failing to properly clean and passivate a fabricated component per these standards is a primary cause of unexpected rusting and premature failure in service.

3.4 A Framework for Consistency: The Role of a Robust Quality Management System (QMS)

While specific standards govern materials and processes, a Quality Management System (QMS) provides the overarching framework that ensures these standards are applied consistently and effectively.

ISO 9001:2015: This is the international standard for a QMS. A fabricator with ISO 9001 certification has demonstrated that they have documented, implemented, and maintain a system for managing quality across all aspects of their organization—from quoting and order entry to material purchasing, process control, inspection, and delivery. For a purchasing manager, ISO 9001 certification is a primary indicator of a mature, reliable, and low-risk supplier. It provides assurance that the fabricator has robust processes in place to meet customer requirements, control quality, and drive continuous improvement.

Section 4: Assuring Integrity – A Deep Dive into Quality Control and Verification

A commitment to standards is meaningless without a robust system for verification. Quality control in stainless steel fabrication is a multi-layered process of inspection and documentation designed to provide objective evidence that all specified requirements have been met. This section provides a practical guide for quality managers and informs engineers and purchasing managers about the critical verification steps that ensure the integrity of the final product.

4.1 The Critical Role of Material Traceability: How to Read and Verify a Material Test Report (MTR)

The Material Test Report (MTR), also known as a Mill Test Certificate (MTC), is the “birth certificate” for a specific batch of metal. It is a quality assurance document issued by the material manufacturer (the mill) that certifies the material’s chemical and physical properties. Full traceability, linking a finished part back to its original MTR, is a fundamental requirement in virtually all critical industries.

Understanding EN 10204: This European standard is the global benchmark for inspection documents for metallic products. It defines several types of certificates, each offering a different level of assurance.
- Type 2.1: A declaration of compliance by the manufacturer, without the inclusion of test results.
- Type 2.2: A statement of compliance that includes results from non-specific inspection (i.e., test results from routine production, not necessarily from the specific batch being supplied).
- Type 3.1: This is the most common and widely accepted certificate type for critical applications. It is a document issued by the mill certifying that the material supplied is in compliance with the order requirements and includes the specific test results for the actual heat (batch) of material being shipped. Crucially, it must be validated by the manufacturer’s authorized inspection representative who is independent of the manufacturing department.
- Type 3.2: This offers the highest level of assurance. It includes all the requirements of a 3.1 certificate but is also co-validated by an independent third-party inspector or the purchaser’s authorized representative. This is typically specified for the most critical applications where external verification is mandated.
A Checklist for MTR Verification: A quality manager should perform a systematic review of every MTR to ensure its validity and compliance.
1. Traceability: The most critical step is to match the Heat Number (the unique identifier for a batch of steel) on the MTR to the heat number physically marked on the raw material or finished part. If these do not match, traceability is broken.
2. Compliance Statement: The MTR must clearly state the material specification and grade to which it conforms (e.g., “ASTM A240 Type 316L”).
3. Chemical Analysis: The report will list the measured percentage of key alloying elements (e.g., C, Cr, Ni, Mo). These values must be compared against the acceptable ranges defined in the referenced standard (e.g., ASTM A240 Table 1).
4. Mechanical Properties: The MTR will report the results of mechanical tests. The values for Tensile Strength, Yield Strength, and Elongation must meet or exceed the minimum requirements specified in the standard.
5. Authenticity: The report should be an original from the producing mill, not a transcription, and should be properly signed and dated by an authorized quality representative.

4.2 Non-Destructive Testing (NDT) for Stainless Steel Welds: A Guide for Quality Managers

Non-Destructive Testing (NDT) comprises a range of analysis techniques used to evaluate the integrity of a material or component without causing damage. For welded fabrications, NDT is essential for detecting hidden flaws that could lead to failure in service. The American Society for Nondestructive Testing (ASNT) provides guidelines for the qualification and certification of NDT personnel, ensuring that inspections are performed by competent individuals.

Visual Testing (VT): The most fundamental NDT method, VT involves a thorough visual examination of the weld and surrounding areas to detect surface discontinuities such as cracks, porosity, undercut, and incomplete fusion. It is always the first step in any weld inspection process.
Liquid Penetrant Testing (PT): PT is a highly effective and low-cost method for detecting surface-breaking defects (like cracks, laps, and porosity) in non-porous materials. A colored or fluorescent liquid penetrant is applied to the surface, which seeps into any open flaws. After the excess penetrant is removed, a developer is applied, which draws the penetrant out of the flaws, creating a visible indication. It is particularly well-suited for austenitic stainless steels because it does not rely on magnetic properties.
Magnetic Particle Testing (MT): This method is used to detect surface and near-surface flaws in ferromagnetic materials. The part is magnetized, and fine iron particles are applied to the surface. Flaws disrupt the magnetic field, creating a “leakage field” that attracts the particles, forming a visible indication. It is important to note that MT is not effective for austenitic stainless steels (300 series), which are non-magnetic, but it is a primary inspection method for ferritic and martensitic grades.
Radiographic Testing (RT): RT uses X-rays or gamma rays to produce an image of the internal structure of a weld on film or a digital detector. It is highly effective for detecting volumetric defects such as porosity, slag inclusions, and internal voids.
Ultrasonic Testing (UT): UT uses high-frequency sound waves transmitted into the material to detect internal flaws. A transducer sends a pulse of sound into the part, and if the sound wave encounters a discontinuity, it is reflected back to the transducer. The time it takes for the echo to return indicates the depth of the flaw. UT is very sensitive to planar defects like cracks and lack of fusion, which are often the most critical.

4.3 Special Considerations for Austenitic Welds: Overcoming Inspection Challenges

The inspection of austenitic stainless steel welds presents a significant challenge for conventional UT. The welding process can create large, columnar grains in the weld metal. This coarse, textured microstructure is anisotropic, meaning its acoustic properties vary with direction. As a conventional ultrasonic beam passes through this structure, it can be scattered, redirected (skewed), and severely attenuated (weakened), making it very difficult to distinguish flaw signals from the background “grain noise” and accurately determine a flaw’s location and size.

To overcome these challenges, advanced ultrasonic techniques are now the industry best practice for critical austenitic weld inspections.

Phased Array Ultrasonic Testing (PAUT): Instead of a single crystal, a PAUT probe contains an array of small, individually controlled elements. By precisely timing the firing of these elements, the system’s software can electronically steer and focus the ultrasonic beam at multiple angles and depths from a single probe position. This capability allows the beam to be optimized to overcome the distorting effects of the weld structure, significantly improving the signal-to-noise ratio and the probability of detection.
Total Focusing Method (TFM): TFM is an even more advanced data processing technique used with PAUT equipment. It captures all possible transmit-receive data from the array (Full Matrix Capture or FMC) and then uses powerful algorithms to reconstruct a high-resolution image of the inspection area, providing exceptional clarity and sizing accuracy for flaws within the challenging weld material.

A supplier’s investment in and proficiency with these advanced NDT capabilities is a direct indicator of their commitment to quality and risk management. It signals a mature quality system designed to ensure the integrity of the most challenging fabrications, providing a level of assurance that cannot be achieved with more basic methods. For a purchasing manager, this capability translates into a lower-risk supply chain, as the cost of this advanced inspection is negligible compared to the potential cost of a field failure.

4.4 Final Verification: Positive Material Identification (PMI) and Dimensional Inspection

Two final verification steps are crucial before a fabricated component is accepted.

Positive Material Identification (PMI): PMI is a rapid, non-destructive method used to verify the chemical composition of an alloy. The most common technique uses a handheld X-Ray Fluorescence (XRF) analyzer, which can identify the grade of stainless steel in seconds. PMI is used as a final check on incoming raw materials or on finished parts to safeguard against material mix-ups, which can have catastrophic consequences in critical applications.
Dimensional Inspection: The final step is to verify that the fabricated component meets all the dimensional and geometric tolerance requirements specified on the engineering drawing. This can be done using a variety of tools, from traditional calipers and micrometers to advanced Coordinate Measuring Machines (CMMs) and 3D laser scanners, which provide a comprehensive, high-accuracy report of the part’s geometry.

Section 5: The Strategic Partnership – A Framework for Vetting Your Fabrication Supplier

Selecting a custom stainless steel fabricator is one of the most critical sourcing decisions an OEM can make. The right partner acts as an extension of the OEM’s own manufacturing capabilities, contributing expertise, ensuring quality, and providing reliable delivery. The wrong partner can introduce unacceptable levels of risk, leading to quality escapes, schedule delays, and cost overruns. A strategic approach to supplier selection moves beyond a simple RFQ process to a holistic evaluation of the supplier’s technical prowess, quality systems, project management capabilities, and overall business health.

5.1 Beyond the RFQ: A Multi-Faceted Evaluation Model

Relying solely on the lowest price from an RFQ is a flawed and high-risk procurement strategy. A truly robust supplier evaluation must be a multi-faceted assessment that balances cost with capability, quality, and reliability. This requires a collaborative effort from the purchasing, quality, and engineering teams to conduct thorough due diligence.

5.2 Assessing Technical Prowess: Equipment, Expertise, and Certifications

This evaluation focuses on the fabricator’s ability to execute the work to the required technical standards.

Experience and Expertise: The fabricator should have demonstrable experience working specifically with stainless steel and, ideally, with the particular grade and application relevant to the OEM’s project. A portfolio of past projects is a good starting point, but direct conversations about the challenges of similar projects can reveal a deeper level of expertise.
In-House Capabilities: A vertically integrated fabricator that can perform all or most of the required processes—from laser cutting and forming to welding, finishing, and polishing—in-house offers significant advantages. This minimizes reliance on subcontractors, providing greater control over quality, lead times, and communication.
Technology and Equipment: Look for evidence of investment in modern, well-maintained equipment. Automated and CNC-controlled systems not only improve efficiency but also enhance precision and repeatability, which are critical for quality.
Certifications: Key certifications serve as third-party validation of a supplier’s capabilities. As noted, ISO 9001 is the baseline for the quality system. For welding, evidence of certified welders and adherence to codes like AWS and ASME is non-negotiable for ensuring the integrity of fabricated assemblies.

5.3 Evaluating Quality and Project Management Systems

A certificate on the wall is not enough. The evaluation must dig into the practical application of the supplier’s systems.

Quality Control in Practice: Go beyond the quality manual. Ask to see their inspection records, their procedures for calibrating measurement tools, and their process for handling a non-conforming part. A mature quality system will have robust, documented processes for every step, from incoming material verification to final inspection.
Project Management: Effective project management is the key to on-time delivery and clear communication. Evaluate their process for project kickoff, progress reporting, and managing engineering change orders. A dedicated project manager or single point of contact can prevent the miscommunications and delays that often occur when information is passed between multiple departments.

5.4 Due Diligence for Purchasing: Financial Stability and Supply Chain Health

These factors are critical for assessing long-term risk and reliability.

Financial Stability: A financially healthy supplier is a stable partner. They are more likely to retain skilled employees, invest in new technology, and weather economic fluctuations without disrupting supply. Factors like years in business, customer and vendor relationships, and a willingness to discuss financial practices can provide insight into their stability.
Supply Chain Management: The fabricator is a critical link in the OEM’s supply chain, but they are also dependent on their own suppliers for raw materials. Inquire about their material sourcing strategy. Do they have established relationships with reputable domestic or international mills? Do they have secondary sources for critical materials to mitigate the risk of shortages? A supplier with a robust and resilient supply chain is a much lower-risk partner.

Ultimately, the supplier selection process is a predictive exercise in risk assessment. Each criterion, from an ISO 9001 certificate to the tenure of their skilled welders, is a data point that helps predict future performance. Consider two fabricators: Fabricator A is 10% cheaper but lacks ISO 9001 certification and has high employee turnover. Fabricator B is more expensive but is fully certified and has a stable, experienced workforce. The lower price from Fabricator A is tempting, but the lack of a formal QMS and an unstable workforce are leading indicators of process inconsistency and potential quality issues. A single quality escape or a major delivery delay from Fabricator A could halt the OEM’s production line, costing exponentially more than the 10% price difference. In this context, the higher price paid for the well-qualified Fabricator B is not an expense; it is an insurance premium against catastrophic supply chain disruption.

Section 6: The Business Imperative – Managing Costs and Lead Times Without Sacrificing Quality

Cost and lead time are the ultimate business metrics by which a procurement project is judged. However, they are not independent variables that can be managed in isolation at the end of the process. They are the outputs of the entire system of choices made upstream: material selection, design complexity, standard specification, and supplier selection. A strategic approach to managing cost and time requires an integrated understanding of their drivers and proactive collaboration between engineering, quality, and purchasing.

6.1 Unpacking the Drivers of Fabrication Cost

The final price of a custom stainless steel fabrication is a composite of several key factors.

Material Costs: The type and grade of stainless steel are a primary cost driver. High-alloy grades like Duplex or even Type 316 are significantly more expensive per pound than general-purpose grades like Type 430. Market fluctuations in the price of raw materials like nickel and chromium also impact cost.
Design Complexity and Tolerances: Every feature, bend, weld, and hole adds processing time and, therefore, cost. Complex geometries, numerous features, and tight dimensional tolerances require more programming time, more machine setups, and more skilled labor, all of which drive up the price.
Quantity and Lot Size: Metal fabrication benefits from economies of scale. Larger production runs allow the fabricator to spread setup costs over more units and optimize material usage, resulting in a lower per-unit cost.
Finishing and Welding Requirements: The specified surface finish can have a major impact on cost due to the labor involved. A highly polished, cosmetic surface requires multiple grinding and buffing steps. Similarly, a Class A weld finish, which is ground smooth and blended seamlessly with the parent material, is far more labor-intensive and expensive than a standard, as-welded Class C finish.

6.2 Key Factors Influencing Project Lead Times

Lead time is the total duration from order placement to final delivery, and it is influenced by a range of variables.

Material Availability: This is often the most significant and least controllable factor. While common grades and thicknesses of stainless steel may be readily available, specialized alloys or non-standard sizes may have mill lead times of several weeks or even months.
Job Complexity: Just as it drives cost, complexity also drives time. A complex part requires more time for programming, setup on multiple machines, fabrication, and inspection.
Fabricator Capacity: The supplier’s current workload and production schedule will determine when a new project can begin. A shop operating at full capacity will naturally have longer lead times.
Customer-Side Factors: Delays on the OEM’s side are a common cause of extended lead times. Incomplete or ambiguous specifications, slow approval of drawings, and, most disruptively, late-stage design changes can halt production and force a project to be re-quoted and re-scheduled.

The interconnectedness of these factors demonstrates that cost and lead time are lagging indicators of design and sourcing efficiency. A purchasing manager attempting to expedite an order after it has been placed may find their efforts futile. If the lead time is long because the engineer specified a rare alloy with a 12-week mill lead time, no amount of pressure on the fabricator can alter that reality. The opportunity to optimize the schedule was during the initial material selection and design phase, where a more common, readily available grade might have been chosen. This illustrates that cost and lead time must be designed-in from the beginning through proactive, cross-functional collaboration.

6.3 Strategies for Mitigation: From Blanket Orders to Collaborative Forecasting

OEMs can employ several proactive strategies to manage cost and time effectively.

Design for Manufacturability (DFM): As detailed in Section 2, engaging the fabricator early to simplify the design and standardize components is the single most powerful lever for reducing both cost and lead time.
Blanket Orders and Kanban Systems: For parts with recurring demand, establishing a blanket purchase order or a Kanban pull system with a trusted fabricator can be highly effective. This gives the supplier the confidence to purchase raw material in larger, more economical quantities and to level-load their production schedule, resulting in shorter lead times for the OEM and greater efficiency for the supplier.
Collaborative Forecasting: Sharing production forecasts with key suppliers allows them to plan their capacity and material procurement in advance, helping to smooth out demand peaks and ensure that materials and machine time are available when needed.

6.4 Calculating the True Cost: A Total Cost of Ownership (TCO) Approach

The ultimate goal of procurement is not to achieve the lowest unit price but to secure the best overall value for the organization. The Total Cost of Ownership (TCO) framework provides a powerful model for making this assessment. TCO moves beyond the purchase price to include all associated costs throughout the product’s lifecycle.

A comprehensive TCO calculation for a fabricated component should include:

Acquisition Cost: The quoted price from the fabricator.
Costs of Quality: The internal costs incurred for incoming inspection, managing non-conformances, rework, and scrap. A low-quality supplier will drive these costs up significantly.
Costs of Delivery: The costs associated with late deliveries, including expedite fees, production line downtime, and the cost of carrying excess inventory as a buffer.
Lifecycle Costs: The costs incurred by the end customer due to the component’s performance, including maintenance, repair, and the cost of failure or downtime.

When viewed through this lens, the value proposition of a high-quality, reliable fabricator becomes clear. Their higher unit price is often more than offset by the significant reduction in the other TCO components. They deliver parts that pass inspection the first time, arrive on schedule, and perform reliably in the field. This minimizes internal costs for the OEM and protects its brand reputation with the end customer. This data-driven approach provides a compelling justification for prioritizing quality and reliability over the lowest initial bid.

Conclusion: Achieving Predictable Excellence in Your Supply Chain

Procuring custom stainless steel fabrications is a sophisticated discipline that lies at the intersection of materials science, precision manufacturing, and strategic supply chain management. Success is not achieved through isolated decisions but through an integrated, lifecycle approach that recognizes the profound and cascading effects of every choice, from the initial selection of an alloy to the final verification of a weld.

As this guide has demonstrated, the path to optimizing quality, cost, and delivery is paved with proactive collaboration. When engineers consult with fabricators on DFM, when quality managers specify and verify to rigorous standards, and when purchasing managers evaluate partners based on TCO and risk, the OEM transforms the procurement process from a tactical transaction into a strategic advantage. This holistic perspective allows the entire team to anticipate challenges, mitigate risks, and make informed trade-offs that deliver the best long-term value.

Ultimately, the goal is to build a resilient and predictable supply chain founded on partnerships with fabricators who are not just suppliers, but collaborators in excellence. By mastering the principles outlined here—from understanding the nuances of metallurgy to implementing a robust supplier vetting framework—OEMs can ensure that every stainless steel component they source contributes to the performance, safety, and enduring quality of their final product. This commitment to integrated excellence is the true key to success in a competitive global marketplace.
